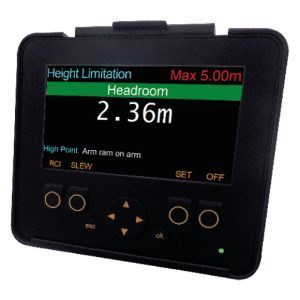

Xwatch MEPW Height & Slew Limiter


Height and Slew Limitation

The XW MEWP can be configured to work on a variety of powered access equipment (MEWPs). Height and slew limitation is controlled using motion cuts providing accurate and repeatable performance without detriment to the machine.

Suitable for

  • Self Propelled Booms (3b, 3b+)
  • Vehicle Mounted Booms (1b, 1b+)
  • Spider/Tracked Booms (3b, 3b+)
  • Vertical Scissors Lifts (1a, 3a/3a+)

Height Limitation

Operation is fail safe and fully automatic with function selection never more than two key presses away. All potential machine high points are monitored. Full power is always available to move away from a limit. Motions are controlled via either hydraulic or electrical control so there is no machine ‘bounce’, overshoot, or undershoot.An optional chassis sensor can be installed to correct for terrain slope.

Slew Limitation

Single/dual parallel wall or angular limitation are available. When walls are in use, the front end equipment is also monitored and controlled for limit breach. Limits can be either manually keyed in or set by positioning the machine. If both limits are active, the system will automatically flip to the appropriate display should a hazard approach occur. Set up is simple, quick, and can be protected with an optional access key switch. All settings are retained and will be active on start-up.
