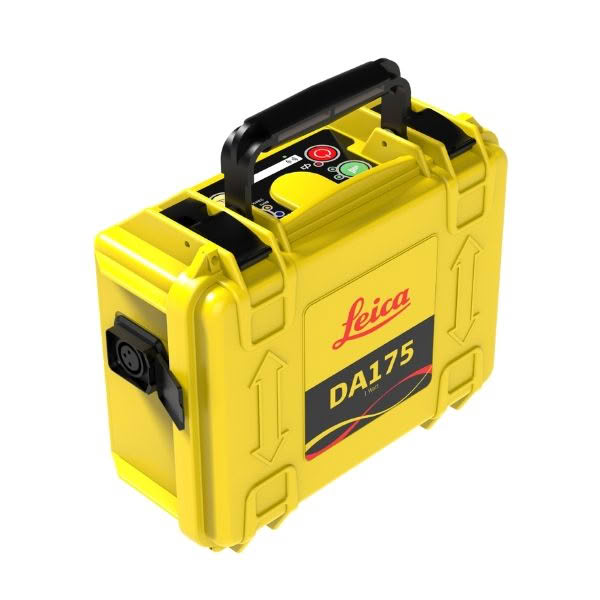

The Leica DA175 is a high-performance signal transmitter designed to enhance the detection of underground utilities. Engineered for use with Leica’s DD series utility locators, the DA175 applies a traceable signal to buried cables and pipes, even those without a naturally detectable signal.

Key Features:

• Multiple Frequencies: Operates at 512Hz, 640Hz, 8kHz, and 33kHz for versatile signal tracing.
• Power Options: Standard 1 Watt output with an optional upgrade to 3 Watt for deeper or more complex utility networks.
• Durable Design: IP67-rated for protection against water, dust, and sand—ideal for rugged field conditions.
• User Interface: LED indicators and a 4-button membrane keypad for intuitive operation.
• Battery Life: Up to 15 hours of operation using standard D-cell alkaline batteries.

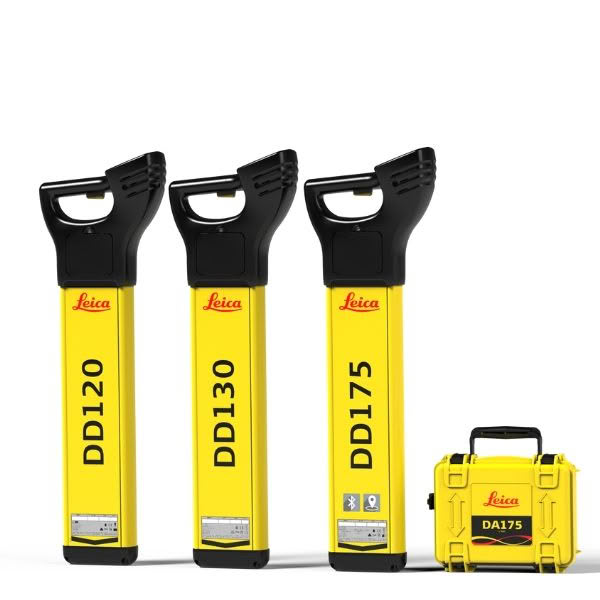

• Compatibility: Fully compatible with Leica DD120, DD130, and DD175 locators.

Whether you’re conducting routine maintenance or complex excavation planning, the Leica DA175 ensures accurate, efficient, and safe utility detection.
