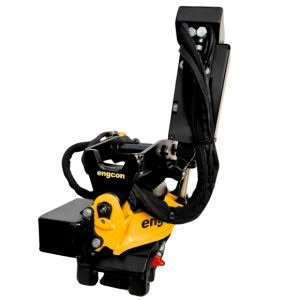

engcon Tiltrotator EC02 SSO Plug & Play [1.5-3.5 tonne]

POA

Suitable for all excavators in the 1.5-3.5 tonne weight class

The engcon tiltrotator EC02 SSO Plug and Play has a tilt angle of 40 degrees. This entry level tiltrotator delivers tilt and rotation only, enabling contractors with smaller machines to benefit from all the versatility that a tiltrotator brings.

Easily installed, the SSO tiltrotators are “Plug and Play” and only require basic hydraulic installation.

Features:

  • Rotation ∞
  • ± 40° tilt
  • Direct fit only, reducing weight
  • Extra hydraulic function under tiltrotator (optional)

Quick hitch: Compatible with S30.

Machine requirements:

  • Quick hitch circuit
  • PTO-1
  • PTO-2

EC02 Specifications

Width A 180 mm
Width B 155 mm
Width C 160 mm
Total Length D 435 mm
Build height E 245 mm
Tilt 40 Degrees
Weight 89 Kg
Max bucket width recommended by engcon 900mm
Rec hydraulic flow DC2/SS10 25 l/min
Rec hydraulic flow SS9 tilt/rotation 7/20 l/min
Max hydraulic pressure 22 MPa
Max breakout torque 20 kNm
Standard mounting S30
Base machine weight 1.5–3.5 tonne
