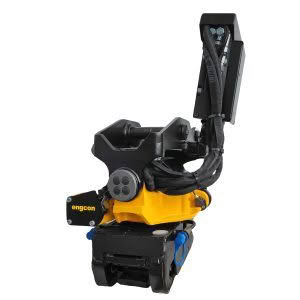

engcon Tiltrotator EC204 SSO Plug & Play [2-4 tonne]

POA

Suitable for all excavators in the 2-4 tonne weight class

The engcon tiltrotator EC204 SSO Plug and Play has a tilt angle of 45 degrees. This entry level tiltrotator delivers tilt and rotation only, enabling contractors with smaller machines to benefit from all the versatility that a tiltrotator brings.

Easily installed, the SSO tiltrotators are “Plug and Play” and only require basic hydraulic installation.

Features:

  • Rotation ∞
  • ± 45° tilt
  • Central greasing point
  • Direct fit only, reducing weight
  • Extra hydraulic function under tiltrotator (optional)

Quick hitch: Compatible with S40.

Machine requirements:

  • Quick hitch circuit
  • PTO-1
  • PTO-2

engcon tiltrotator diagram 1

Width A 267 mm
Width B 161 mm
Width C 169 mm
Total Length D 463 mm
Build height E 300 mm
Tilt 45 Degrees
Weight 123 Kg
Max bucket width recommended by engcon 1000mm
Rec hydraulic flow DC2/SS10 30 l/min
Rec hydraulic flow SS9 tilt/rotation 10/25 l/min
Max hydraulic pressure 22 MPa
Max breakout torque 28 kNm
Standard mounting S40
Base machine weight 2-4 tonne
