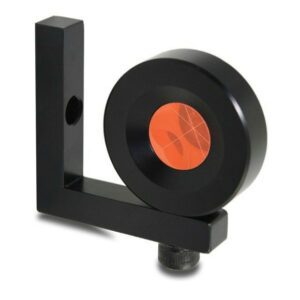

SECO 660-02 Mini L-Bar Prism

SECO 660-02 Mini L-Bar Prism (Copper Coated)

$145.00 $123.00 excl GST
Quantity

$145.00 $123.00 excl GST

    Enquire Now


The SECO 6600-02 Mini L-Bar Prism features a copper-coated 25mm prism and is designed for longer range applications, up to 600 m with most instruments, anodised aluminum construction, comes with a 10.3 mm mounting hole.

The SECO 6600-02 Mini L-Bar Prism:

  • The SECO 25-mm L-Bar Mini Prism is perfect for deformation surveys, mining surveys, or where permanent mounting is needed.
  • Design makes mounting and pointing simple.
  • Features a black anodized aluminum holder.
  • The 25 mm Copper-coated prism is permanently bonded to the holder, making it water and dust proof.
  • The mounting hole is 10.3mm (0.406 inch) in diameter.
  • Tilting screw uses an 8 mm hex wrench to loosen and tighten it
  • -25 mm offset
  • Weighs 0.20 kg
