The Leica Rugby 610 rotating laser is an entry level laser for construction, providing accurate horizontal only laser levelling. Ideal for many onsite applications including site levels, retaining walls, timber framing and concrete pads etc.
Fit, fast, tough – select the perfect team player for your site
Leica Rugby lasers are the toughest rotating lasers suitable for all construction applications. Level and align much quicker than ever before, eliminating costly errors and downtime.
Leica Rugby 610 rotating laser – one button simplicity
- Simple and reliable, one button where no mistakes are possible
- Superb performance with all Leica Rod Eye receivers
Package includes:
- Rugby 610 rotating laser level
- Rod Eye 160 digital receiver with mm reading
- A280 receiver bracket
- Li-Ion battery & charger
- Carry case

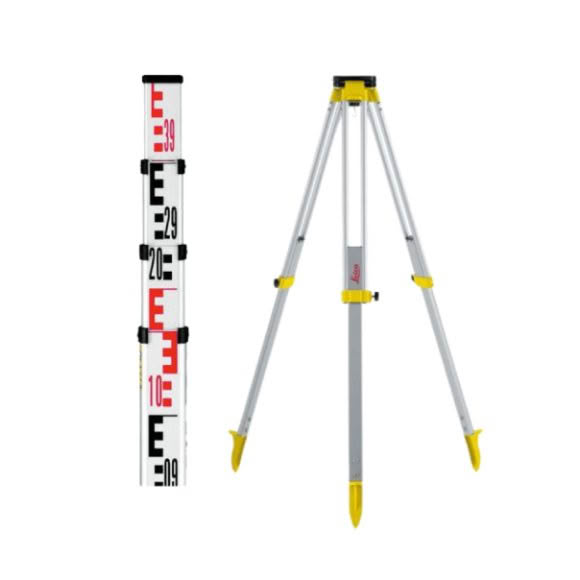

- GST103 aluminium tripod
- CLR104 levelling staff
In stock now, free shipping and next day dispatch!
| Technical Data | Leica Rugby 610 | Leica Rugby 620 | Leica Rugby 640 |
| Dimensions | 212 × 239 × 192mm | ||
| Weight | 2.38kg | 2.56kg | 2.56kg |
| Functionality | Self-leveling horizontal, one button laser | Self-leveling horizontal & manual slope in one axis | Self-leveling horizontal, vertical, 90° and manual slope in dual axis |
| Product Type | General construction | General construction | Multipurpose / H.V. |
| Laser Class | Class 2 | ||
| Laser Type | 635nm (visible) | ||
| Plumb Up | – | – | Yes |
| Measured at 20°C (horizontal / vertical) | ±2.2mm at 30m | ±2.2mm at 30m | ±2.2mm at 30m |
| Grade Range | – | 8% | 8% |
| Rotation RPS | 10 | 10 | 0, 2, 5, 10 |
| Scanning Degrees | – | – | 10, 45, 90 |
| Scan 90 | – | – | Yes |
| Beam down | – | – | Yes |
| Sleep mode | – | – | Yes |
| Range Diameter–RE140/160 | 1,100m | ||
| RF Remote Control Diameter | – | – | 200m |
| Li-Ion Batt. Hours Operation | 40+ | 40+ | 40+ |
| Alkaline Batt. / Hours Operation | 60+ | 60+ | 60+ |
| Working Temperature Range | -10 to +50°C | -20 to +50°C | -20 to +50°C |
| Storage Temperature Range | -20 to +70°C | -40 to +70°C | -40 to +70°C |
| Seal (excluding & including battery pack) | IP67 | IP67 | IP67 |
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for lifetime coverage) | ||
“The four Leica Rugby Packages I recently purchased at the Field Days this year have been great for our business. We only use Leica laser equipment as it is proven in our environment.The Rugby’s are such a great unit for our type of site works and drainage. They are very simple to set up & use, the crews want accurate simple gear to use and Leica offers this.”
Simon Mulligan, Director, Taranaki Civil
