The Leica DISTO D5 is ideal for outdoor distance measurements. Its digital Pointfinder makes aiming easy, even in bright sunlight and at long distances.
The large IPS display clearly shows both the target and the measurement results. For maximum accuracy, you can trigger measurements with gestures, which is especially useful over long distances. The device offers various functions, including Smart Horizontal Mode, height tracking, profile, and angle measurements, providing high flexibility for any construction site measurement situation. You can quickly transfer the data to the DISTO Plan app or templates like Excel for efficient and error-free digital workflow processing.
Product Features:
- Range up to 200 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measuring slopes
- Smart Horizontal mode
- Fast Start-up time – ready in under 1 second
- Foldable end-piece with automatic detection
- Bright and clear 2.4” IPS display with scratch-proof lens
- Trigger measurements with gestures
- Memory for 50 measurements
- Li-Ion rechargeable battery
- USB-C charging
- Keyboard simulating data-transfer via Bluetooth®
- Bluetooth® 5.0 Technology for error-free data transfer
- Works with DISTO™ Plan App (iOS and Android) and DISTO™ transfer (Windows) Technical data Leica DISTO™ D5

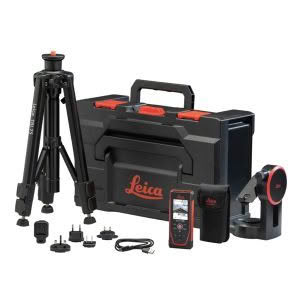

Includes:
- Leica DISTO D5 laser distance meter
- Hand loop
- Pouch
- Charger including four different plugs and USB cable
- Leica FTA 360 adapter
- Leica TRI 75 tripod
- metaBOX
- Safety instructions
- Calibration Certificate Silver
- Quick Start with QR code linking to online manual
- 3 Years warranty card
| Leica DISTO™ D5 | |
| Accuracy with favourable conditions * | 1.0 mm / 1/16″ *** |
| Accuracy with unfavourable conditions ** | 2.0 mm / 1/8″ *** |
| Range with favourable conditions * | 0.05 – 200 m / 0.07 – 660 ft *** |
| Range with unfavourable conditions ** | 0.05 – 120 m / 0.07 – 400 ft *** |
| Accuracy and Range according to ISO 16331-1 | yes |
| Smallest unit displayed | 0.1 mm / 1/32″ |
| X-Range Power Technology | yes |
| Laser | Class 2, 635 nm, <1 mW |
| Digital Pointfinder with 4-fold zoom | yes |
| Tilt measuring range **** | 360° |
| Tilt measuring tolerance | ± 0.2° |
| ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m |
| Protection class | IP54 (dust- and splash water protected) |
| Auto. laser switch off after | 90 s |
| Auto. power switch off after | 180 s |
| Bluetooth® Smart | Bluetooth® v5.0 |
| Bluetooth® | v5.0 |
| Range of Bluetooth® Smart | up to 10 m |
| Battery durability (Li-Ion 2 000 mAh) | up to 5’000 measurements up to 10 hours operation time |
| Dimension (L x W x H) | 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in |
| Weight | 180 g / 6.35 oz |
| Temperature range storage | operation | -25 to 70°C / -13 to 158°F | -10 to 50°C / 14 to 122°F |
