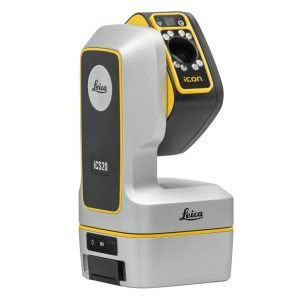

The Leica iCON iCS20 is a motorised construction tool designed for capturing both 2D and 3D measurement data for interior finishing and projecting installation points. With its high-resolution camera or laser-point, it allows for easy aiming at measurement points.
This easy-to-use tool is ideal for professionals transitioning from traditional manual methods to digital workflows. The visual measurement technology ensures that the current situation is always displayed, preventing any oversights. It features automated workflows and intuitive, industry-specific software (Leica iCON trade), making it suitable for a wide range of applications.
Leica iCON iCS20 – Features
- Very compact size
- Measuring range: 0.3 m – 50 m (250 m optional)
- Angular accuracy: 5”
- 3D point accuracy (without reflector): 1 mm @ 10 m, 2.5 mm @ 50 m
- Very fast direct drives (180°/s)
- Fisheye camera for panorama pictures
- High-resolution overview and on-axis camera for precise aiming
- Spotlight for measurements in poorly lighted environment
- Leica vTarget for very fast relocation
- Snap-on tripod mount for fast set-up
- Auto-levelling in a range of ± 3°
- WiFi connection to tablet
- Protection class IP54 for indoor & outdoor
- Li-Ion battery for a full working day
- Mechanical theft protection with Kensington lock
Leica iCON iCS20 – Simple, Fit for Purpose and Efficient
Ready for Use in Just a Few Steps
Due to its compact size and wireless connectivity, you can carry the Leica iCON iCS20 onto site, set it up, and operate it on your own – without the need for a second person. Smart features such as the ‘quick-mount’ tripod or the ‘auto-setup’ process ensure that the device is ready to use in just a few steps and help to avoid mistakes.
Fast Layout and Aiming
The camera live stream delivers extremely sharp images. This allows you to see on the tablet what the Leica iCON iCS20 sees and to select any point accurately. Due to the unique high-speed motor, the construction tool then locates that point very quickly with the bright pointing laser, shortening layout and measurement processes.
Line and Area Scans
This function simplifies capturing complex contours, such as door arches or rooms with uneven walls. Define the measurement range by a start and end point, as well as the measurement interval. The Leica iCON iCS20 automatically scans the measurement area and provides highly accurate results.
Leica vTarget – Easy Relocation
The visual-based target detection and the automated process greatly simplify the relocation of the device. New Leica vTargets are automatically detected. This saves you time, avoids errors and allows you to quickly continue your layout and measurement tasks even after a break. It also ensures best line of sight by always placing the device close to the working area.
Error Prevention
Active and continuous monitoring of the unit’s position automatically detects even the smallest movement and triggers an alarm. This avoids inaccuracies and expensive mistakes, allowing you to work more environmentally friendly.
