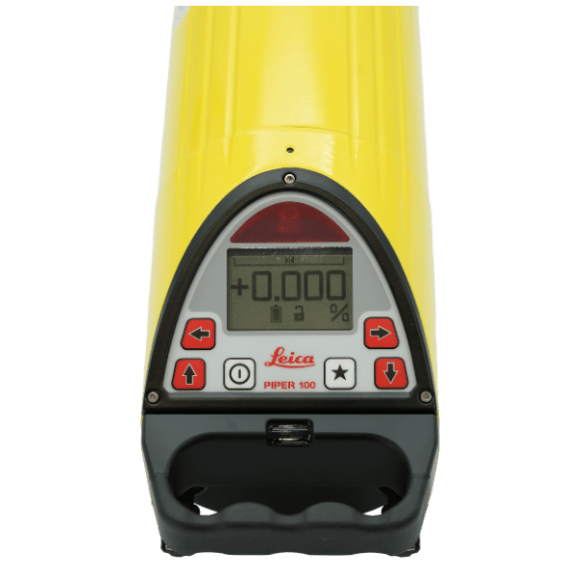

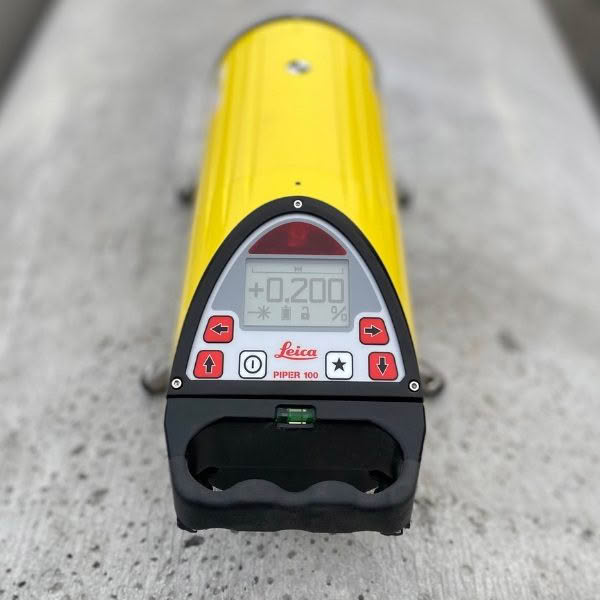

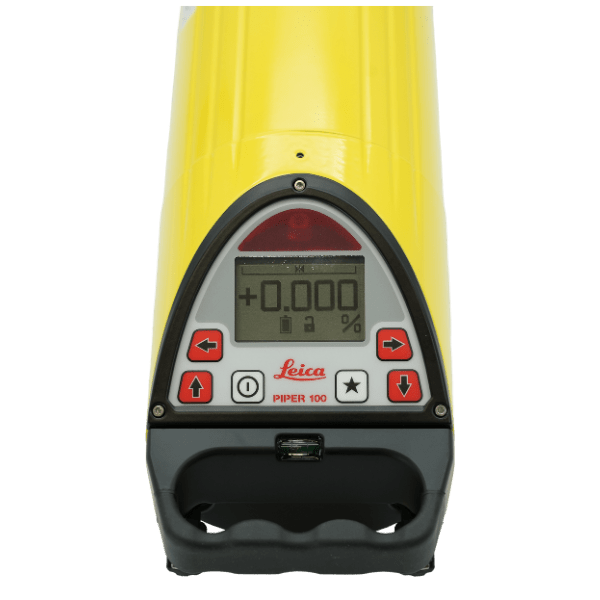

The Leica Piper Green 100 drainage laser delivers robust performance in various settings, including inside pipes, overhead, or within manholes. This powerful instrument, housed in a rugged aluminum casing, ensures reliable operation even in challenging site conditions.
Key Features:
- Versatility: Ideal for various applications, including pipes, overhead, and manholes.
- Compact & Rugged: Smallest pipe laser on the market (fits inside a 100mm pipe)
- Durable: IP68 rated for full dust and water protection.
- Accurate: Range up to 200m with an accuracy of +/-1.5mm at 30m.
- Automatic Grade Compensation: Compensates and corrects for grade errors.
- Easy Setup: Auto-targeting for simplified second day setups.

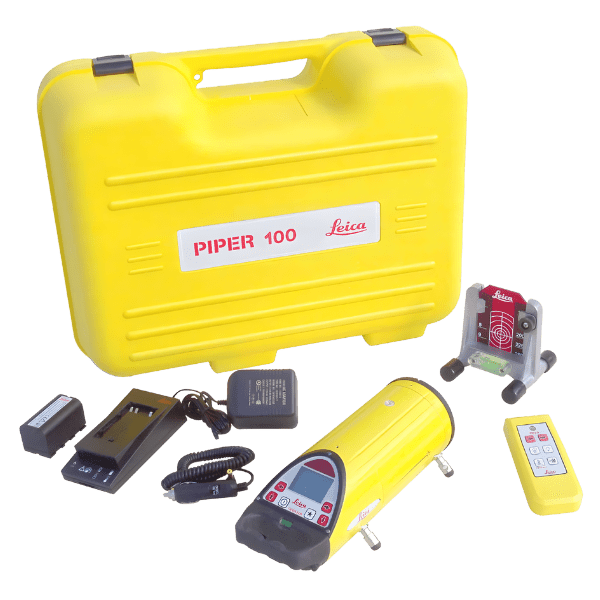

Leica Piper 100 Package Includes:
- Leica Piper 200 (Green laser) pipe laser
- Rugged carrying case
- Remote control
- Target assembly
- Lithium-Ion battery & charger
- Self-centering feet (150 mm)
- Leica Trivet sold separately
| PIPER 100 | PIPER200 | |||
| RED | GREEN | RED | GREEN | |
| Auto targeting | No | Yes | ||
| Wave Length | 653nm | 520nm | 653nm | 520nm |
| Max. average radiant power | 4.75mW | 4.8mW | 4.75mW | 48mW |
| Working range | <200m/650 ft | |||
| Grade range | -10% to +25% | |||
| Self-leveling range | -15% to +30% | |||
| Line movement | 6m at 30m / 20ft at 100ft | |||
| Battery* | Li-Ion, up to 40h | |||
| Charging time* | 4 Hours | |||
| Operating temperature | -20°C to +50°C / -4°F to +122°F | |||
| Dimensions (diameter x length) | 96mm x 267mm / 3.9“ x 10.5“ | |||
| Weight | 2.0Kg / 4.4lbs | |||
| Housing | Cast aluminum | |||
| Protection class | IPx8 | |||
| Wireless remote distance | Front 150m / 500ft | |||
| Back 10m / 35ft | ||||
| Self leveling accuracy** | +/-1.5mm at 30m / +/- 1/16“ at 100ft | |||
